D-50P
Sysform
Paper Drilling Machine
Description

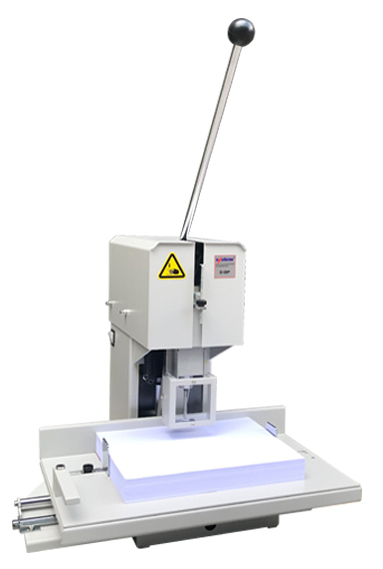

D-50P Semi-auto Paper Drill
Single hole paper drill, equipped with safety guard for safe operation, with programmed bar for drilling options, available drill bits from 3mm to 10mm, professional design for avoiding waste paper jamming, heavy duty motor, adjustable driling margin, auto paper centering
Share this Product
- Specification
- Video
- Download
Specification
Specifications
| Drilling Capacity |
50mm / 1.97" |
| Max. Paper Width | 350mm / 13.78" |
| Drill Margin | 28mm / 1.1" |
| Dimensions (W x D x H) | 520x500x790mm |
| Weight | 26kg |
Note: The machine comes with one 6mm drill bit. Other sizes have to be purchased as extra.
Consumables:
1. Drill bit (3mm~10mm)
2. Cutting Pad
Video
