D-50A
Sysform
Paper Drilling Machine
Description

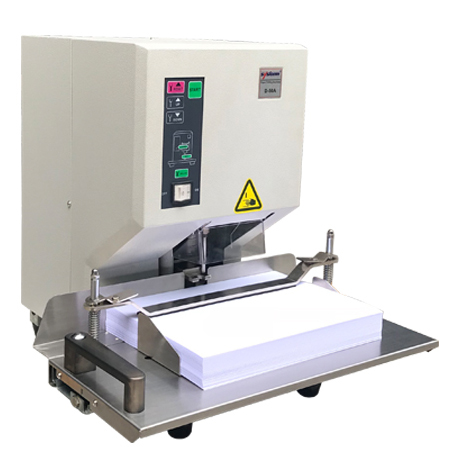

Sysform D-50A Automatic Paper Drill
Automatic single hole paper drilling, one touch operation, equipped with programmed bar for drilling options, with safety guard for safe operation, with auto paper centering side gauge, adjustable drilling margin from 4mm - 25mm
Share this Product
- Specification
- Video
- Download
Specifications
| Drilling Capacity |
50mm / 1.97" |
| Max. Paper Width | 350mm / 13.78" |
| Drill Margin | 25mm / 1" |
| Dimensions (W x D x H) | 530x480x480mm |
| Weight | 36kg |
Note: The machine comes with one 6mm drill bit. Other sizes have to be purchased as extra.
Consumables:
1. Drill bit (3mm~8mm)
2. Cutting Pad
