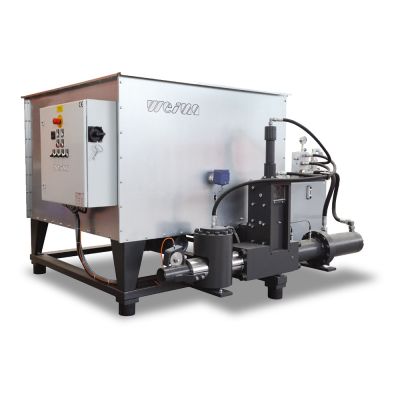

TH 514/520 Briquette Press

TH 514/520 Briquette Press

Weima

Metal

Description

The TH Standard series is designed for processors requiring throughput rates of more than 80 kg per hour or more than 200 kg per day. Highly compact briquettes are possible with this sturdy press housing with materials such as; wood, polystyrene, foam, light alloy, paper or biomass. Numerous options available to include; oil cooling allowing multi-shift operation. All machines available as left or right-hand design. Mounting on a sturdy base frame ensures rapid installation and possible mobile use. The extra large hoppers (1400 x 1400 mm / 2000 x 2000 mm) allow high material loading and enlarge the buffer volume.

Share this Product

Enquiry Cart
  • Specification
  • Download
  • High-performance pressing mechanism with low-wear, chrome-plated tongs
  • Hardened pressing chamber insert
  • End-position cushioned cylinder with dust collection port
  • Switch box with SPS control
  • Delivery to compression process via geared motor worm screw horizontal conveyor
  • Separate oil tank with pump motor and valve control
  • Oil temperature safety control
  • Sturdy base frame with rubber feet
  • Briquette length control sensor
