WL10 Single-shaft Shredder

WL10

Weima

Wood

Description

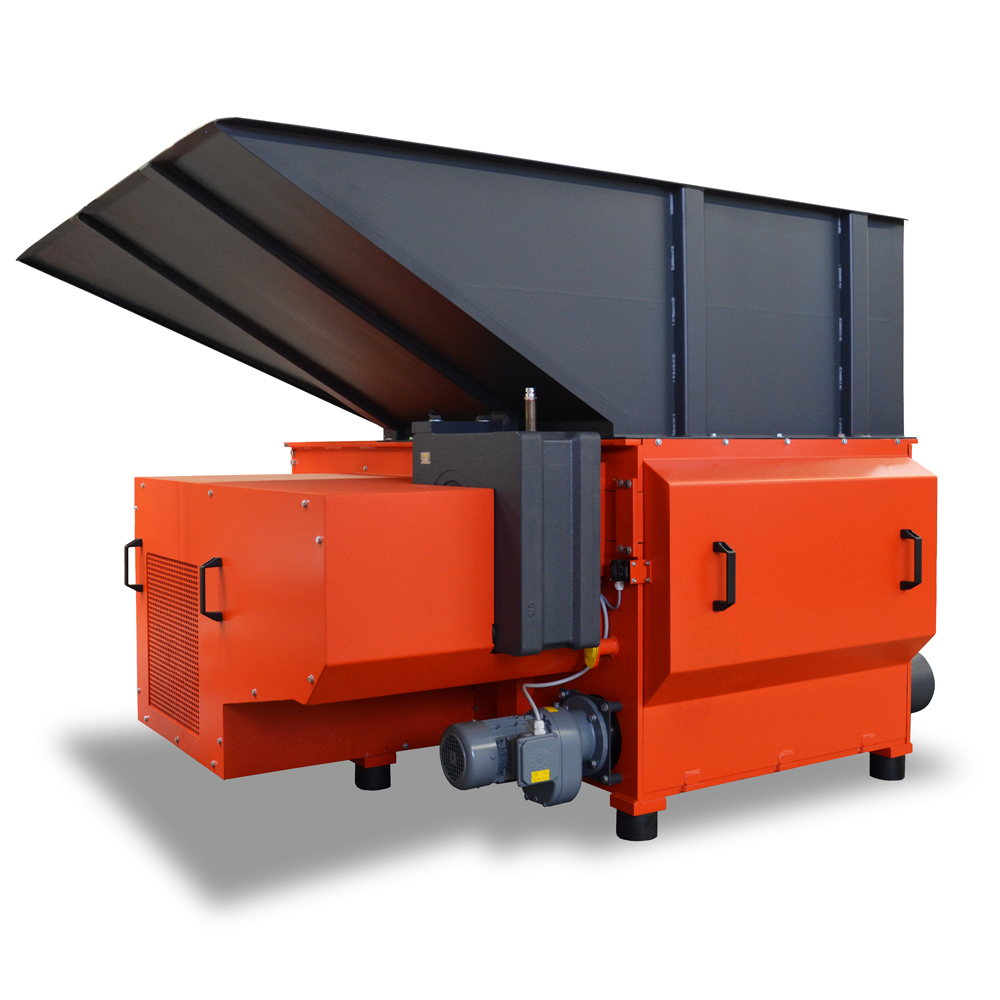

The WL 10 single-shaft shredder is used in the woodworking industry for shredding large quantities of timber waste. The rotor widths is  1000 mm. The machine is driven by an electric motor with an output of 30 kW to 45 kW. The level of required drive output depends on the material to be shredded, the number of shredding knives being used and the required throughput rate. Material is fed through the hopper to fall in front of a hydraulically operated drawer that presses the material, according to load, onto the turning rotor. The material is shredded between the rotor knives and a fixed stationary counter knife. The drawer is equipped with castellation as is the floor to prevent materials being lodged between the drawer and the machine casing. The chips produced can be conveyed from the output of the machine by an air extraction system, screw or belt conveyor.
